Industrial-Grade Conveying Solution for Overweight Bulk Materials

We have focused on industrial weighing and automatic control equipment for years, and developed this heavy-duty conveyor line to solve common pain points of ordinary transport machines: frame deformation, belt slipping, frequent shutdown maintenance and poor compatibility with weighing equipment.

Unlike light-duty workshop conveyors, our belt and slat conveyors target high-density raw materials like ore, coal, cement clinker and heavy metal workpieces, realizing continuous stable material transfer from raw feeding to finished product delivery.

HLS-LB

Core Build & Field-Proven Strength

• Ultra-strong load-bearing structure for long-cycle heavy transport

The whole frame uses thick carbon steel welded construction with stress relief treatment, which resists heavy impact and extrusion from bulk stone and ore.

Belt type: Equipped with high-tensile wear-resistant rubber belts

Slat type: Thick stainless steel slats plus heavy industrial transmission chains

Max load reaches 1500kg per meter (belt model) and 2000kg per meter (slat model), no bending or structural failure under full-load continuous running.

• Anti-deviation, low-energy stable running

We adopt well-known brand motors and reducers as core drive parts, matched with independent tension adjusters and full-range anti-offset limit structures.

Belt conveyor runs quietly with lower power consumption; slat conveyor keeps steady transfer under extreme heavy loads.

Adjustable running speed avoids material overflow and uneven feeding, no frequent calibration needed for round-the-clock production.

• Wide working condition adaptability & easy modular maintenance

Multiple customized belt options for oil-proof, acid-alkali resistant and medium-temperature environments for belt conveyors.

Slat conveyor can handle materials up to 300℃ with excellent anti-corrosion performance, perfect for high-dust, high-heat mining and chemical workshops.

All parts adopt split modular design.

Rollers, belts and chains can be replaced quickly without disassembling the whole machine, greatly shortening production downtime and lowering labor maintenance expense every year.

• Reserved interface for dynamic weighing & digital production control

Every conveyor leaves mounting space for electronic belt scales.

It can complete real-time flow measurement while transporting materials, with fast data feedback and high weighing precision.

Factory managers can automatically adjust feeding volume and count daily output, breaking the separation of conveying and metering in traditional production lines.

• Full Customization & Wide Industrial Application

All core sizes including conveying length, width and running speed can be customized according to factory layout limits.

This heavy-duty conveyor system is widely applied in cement, construction material, mineral processing, chemical raw material and heavy machinery industries, undertaking raw material feeding, inter-process transfer and finished heavy cargo turnover.

Whether you need matched conveying equipment to support ton bag packaging production lines, or independent heavy-load transport system for mine bulk materials, our technical team can design exclusive solutions based on your material density, working temperature, hourly output and site space.

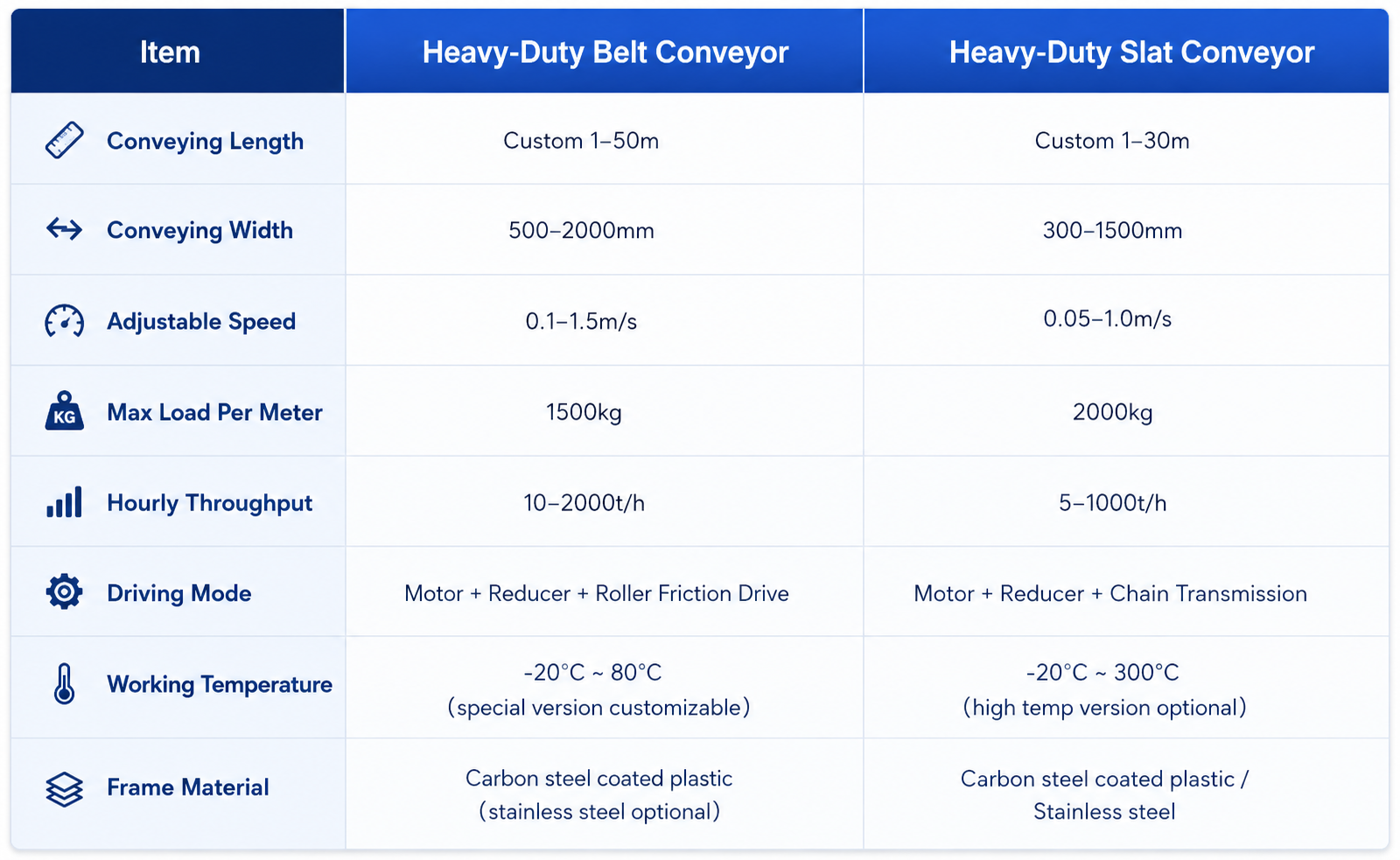

Technical Parameter Table
