LCS-X Suspended Belt Scale
Continuous Weighing for Bulk Material Handling
The LCS-X Suspended Belt Scale is designed for continuous weighing of bulk materials on belt conveyors. It measures instantaneous flow rate (t/h) and totalized weight during material conveying.
With a suspended weighing bridge and multiple load cell configurations, the LCS-X Series can be adapted to different conveyor capacities, belt widths and operating conditions.
It is suitable for mining, aggregates, cement, metallurgy, grain handling, chemical processing and other bulk material applications.
Available Configurations
The LCS-X Series is available with 2, 4 or 6 load cells.
| Configuration | Recommended Application |
| 2 Load Cells | Standard conveyors and general bulk material weighing |
| 4 Load Cells | Medium- to high-capacity conveyors requiring improved weighing stability |
| 6 Load Cells | Wide-belt, high-capacity and heavy-duty conveying systems |
- 2-Load-Cell Configuration
Designed for standard belt conveyors with moderate throughput requirements.
Its simple weighing structure makes it suitable for general bulk material handling applications such as grain, aggregates and industrial raw materials.
- Suspended Weighing Bridge
The LCS-X uses a suspended weighing bridge to transfer material load from the weighing idlers directly to the load cells.
Its simplified load-transfer structure helps reduce the influence of unwanted mechanical forces and provides stable measurement during continuous operation.

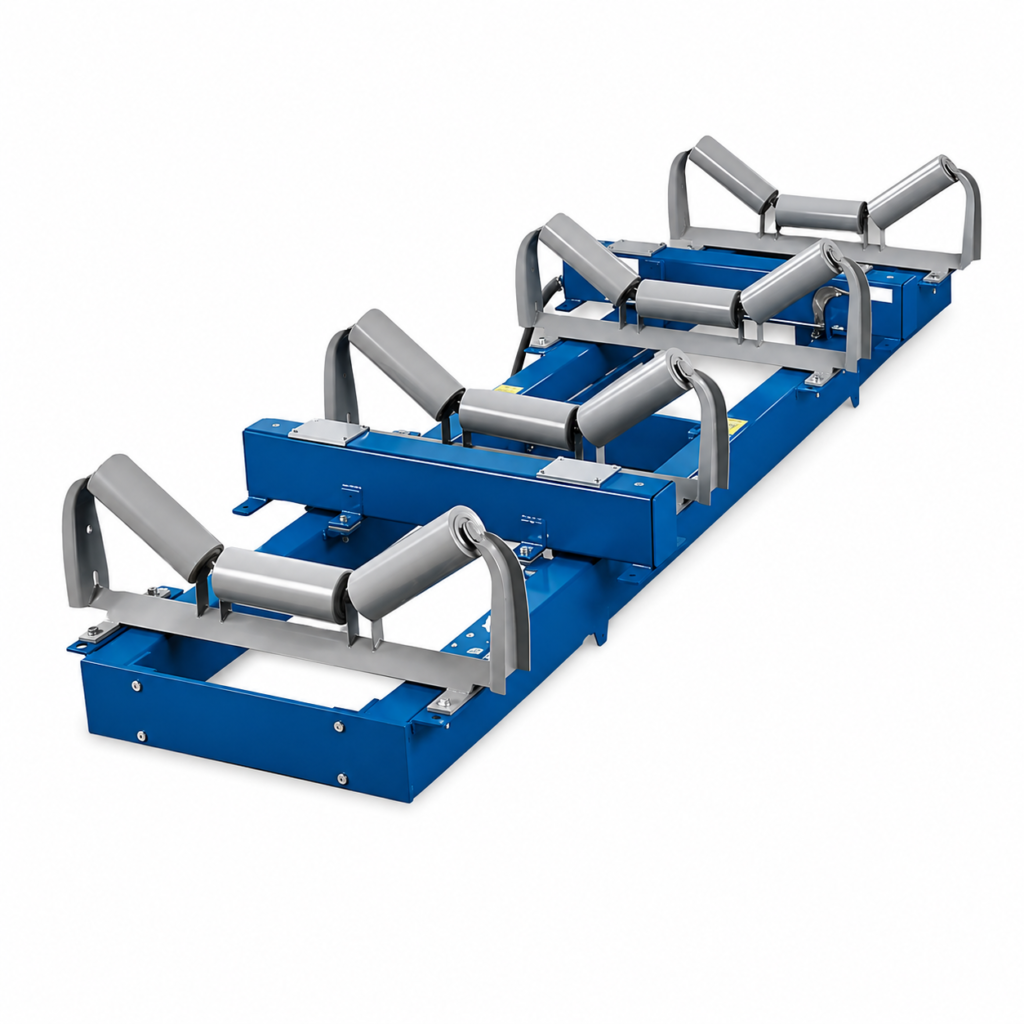

- 4-Load-Cell Configuration
Suitable for higher-capacity conveyors and applications requiring improved weighing stability.
The additional load cells provide better load distribution across the weighing bridge, making this configuration suitable for mining, cement, aggregates and continuous production lines.
- 6-Load-Cell Configuration
Designed for wide belts, heavy material loads and demanding continuous conveying applications.
This configuration is typically used in large mining conveyors, high-throughput bulk handling systems and other heavy-duty industrial applications.
Key Features
- Continuous automatic weighing
- Real-time flow rate measurement
- Totalized material weight
- 2 / 4 / 6 load cell configurations
- Suspended weighing bridge design
- Suitable for wide belts and high throughput
- Simple installation and maintenance
- Multiple industrial communication options
How to Select the Right LCS-X Configuration？
The correct belt scale configuration depends on the actual conveyor and operating conditions rather than the number of load cells alone.
For product selection and quotation, please provide:
Belt Width + Belt Speed + Maximum Capacity + Material + Idler Spacing + Required Accuracy
KELISCALES can recommend the appropriate LCS-X weighing bridge and load cell configuration based on your conveyor specifications.
Contact KELISCALES
If you need a belt scale for a new or existing conveyor, send us your conveyor parameters and application requirements.
Our team can help you select the suitable LCS-X configuration and provide technical specifications and quotation.
